AUSTRALIAN MADE VACUUM ROAD TANKERS
VACUUM tankers
LIQUID VACUUM LOADING TANKER SOLUTIONS BUILT FOR AUSTRALIAN INDUSTRY
vacuum tanker solutions
ATE manufactures a comprehensive range of vacuum tanker solutions for liquid vacuum loading applications. Our vacuum tankers are offered with aluminium, carbon steel and stainless-steel barrels.
- 4×2, 6×4 and 8×4 rigid vacuum tankers.
- Low clearance vacuum tankers.
- Dangerous goods vacuum tankers.
- Dog trailer (3, 4 and 6-axle) vacuum tankers.
- Semi-trailer vacuum tankers.
- Hook lift vacuum tankers.
RIGID, AS2809 DG, LOW CLEARANCE, SEMI-TRAILER, DOG TRAILER VACUUM AND HOOK LIFT VACUUM LOADING TANKER SOLUTIONS
our vacuum TANKER range
Each tanker is engineered to suit the intended operation, with a choice of barrel materials, vacuum systems, trailer configurations and discharge options to meet your operational requirements.

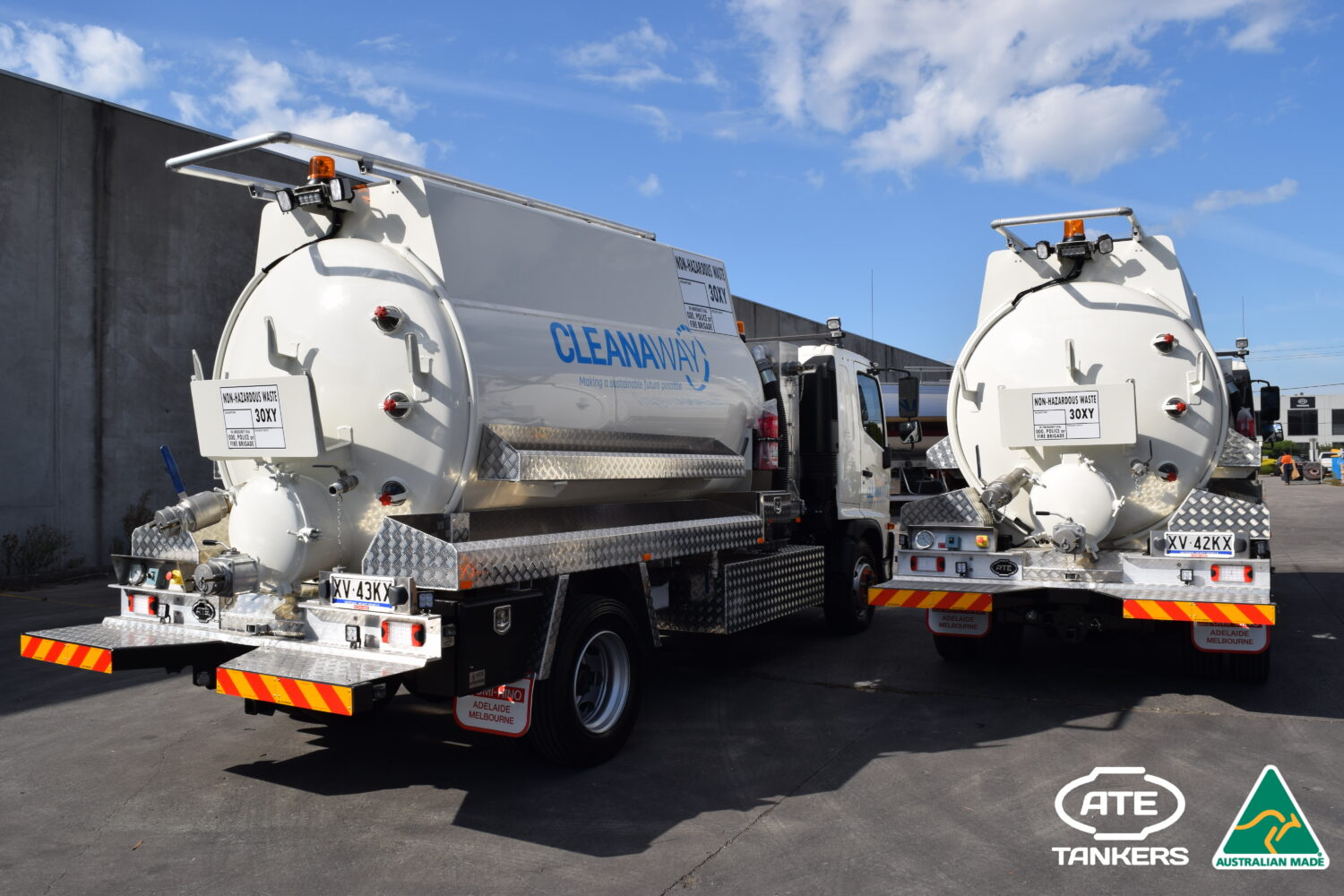

Rigid Mounted Vacuum Tankers
A wide range of 4x2, 6x4 and 8x4 rigid mounted vacuum tankers with options for aluminium and carbon steel barrels, tipping and rear door opening.
Dangerous Goods Vacuum Tankers
Purpose-built vacuum tankers designed for vacuum loading of flammable, corrosive and toxic liquids. Available in rigid, dog trailer and semi-trailer configurations.
Low Clearance Vacuum Tankers
With a 2.0-meter height this vacuum tanker is ideal for low clearance areas such as multi-story car parks. Fitted with ATE's 3500-litre aluminium barrel and a 300CFM vacuum pump, this tanker is optimised for volume, payload and efficiency.
Dog Trailer Vacuum Tankers
ATE specialises in 3, 4 and 6-axle vacuum dog trailers. Dog trailers when paired with a rigid vacuum tanker dramatically increase the operational capacity of a rigid vacuum tanker.
Semi-Trailer Tri Axle Vacuum Tankers
Tri-axle vacuum trailer tankers built for bulk vacuum loading operation with options for aluminium and carbon steel barrels, tipping and rear door opening.
Hook Lift Vacuum Tankers
Hook lift vacuum tanker modules increase fleet versatility by allowing a single cab chassis to operate interchangeable truck bodies.rigid LIQUID VACUUM LOADING TANKER SOLUTIONS

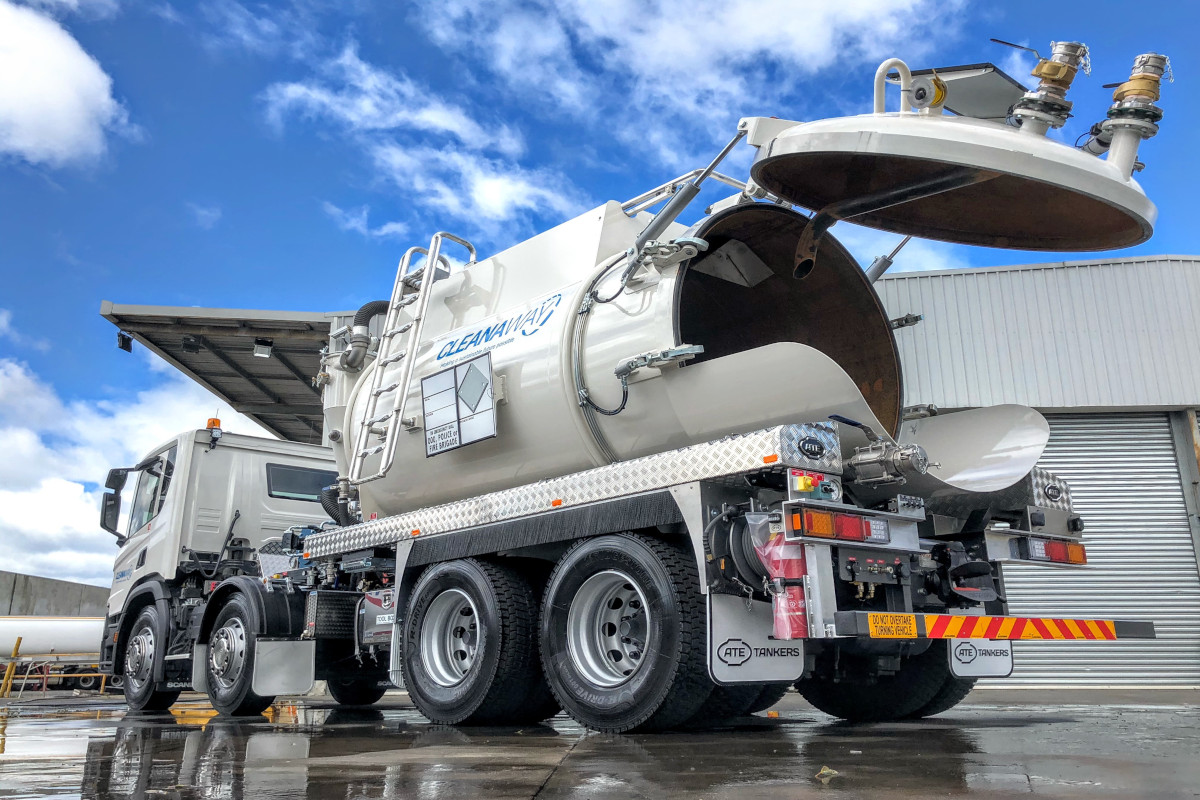

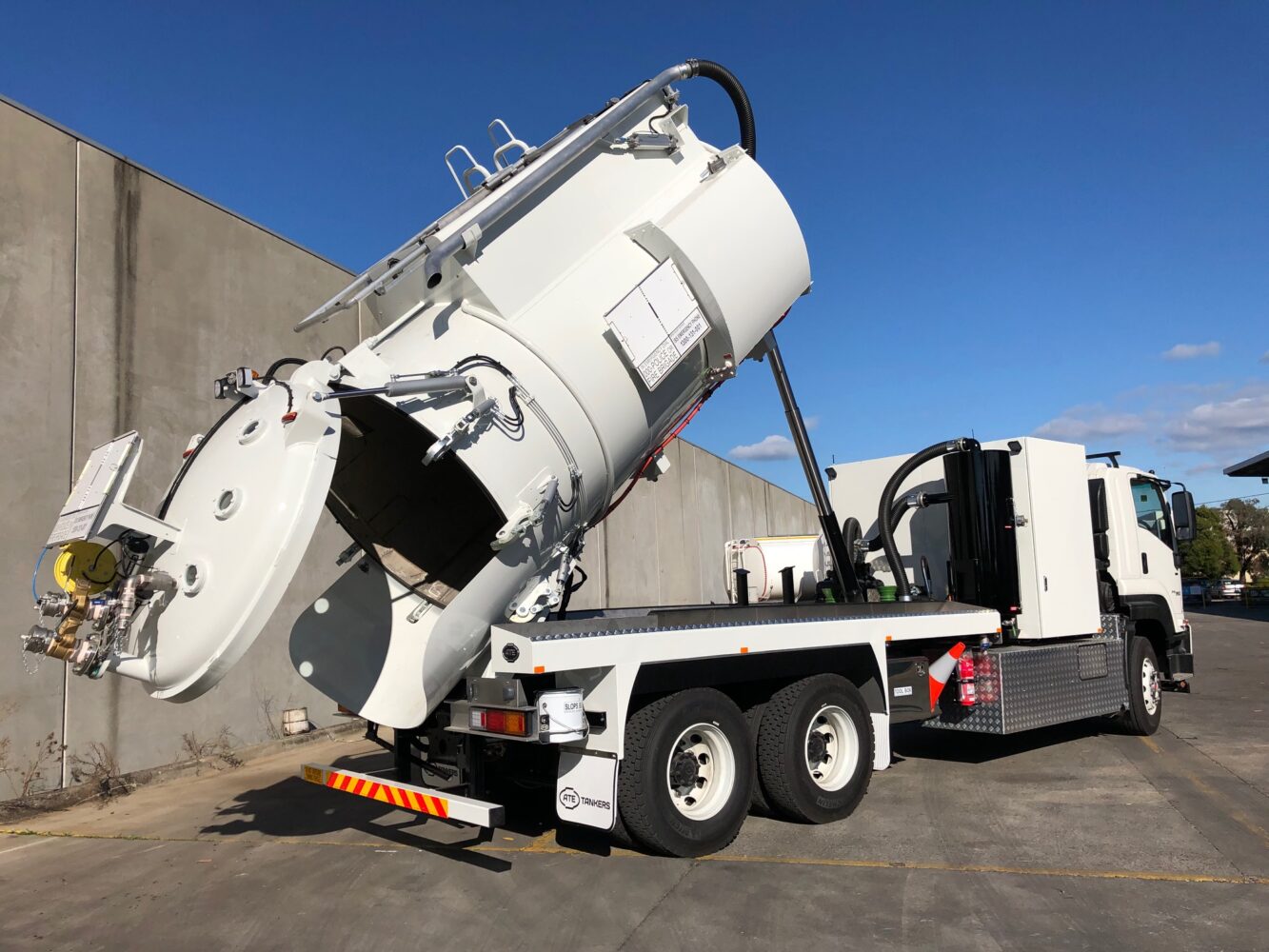

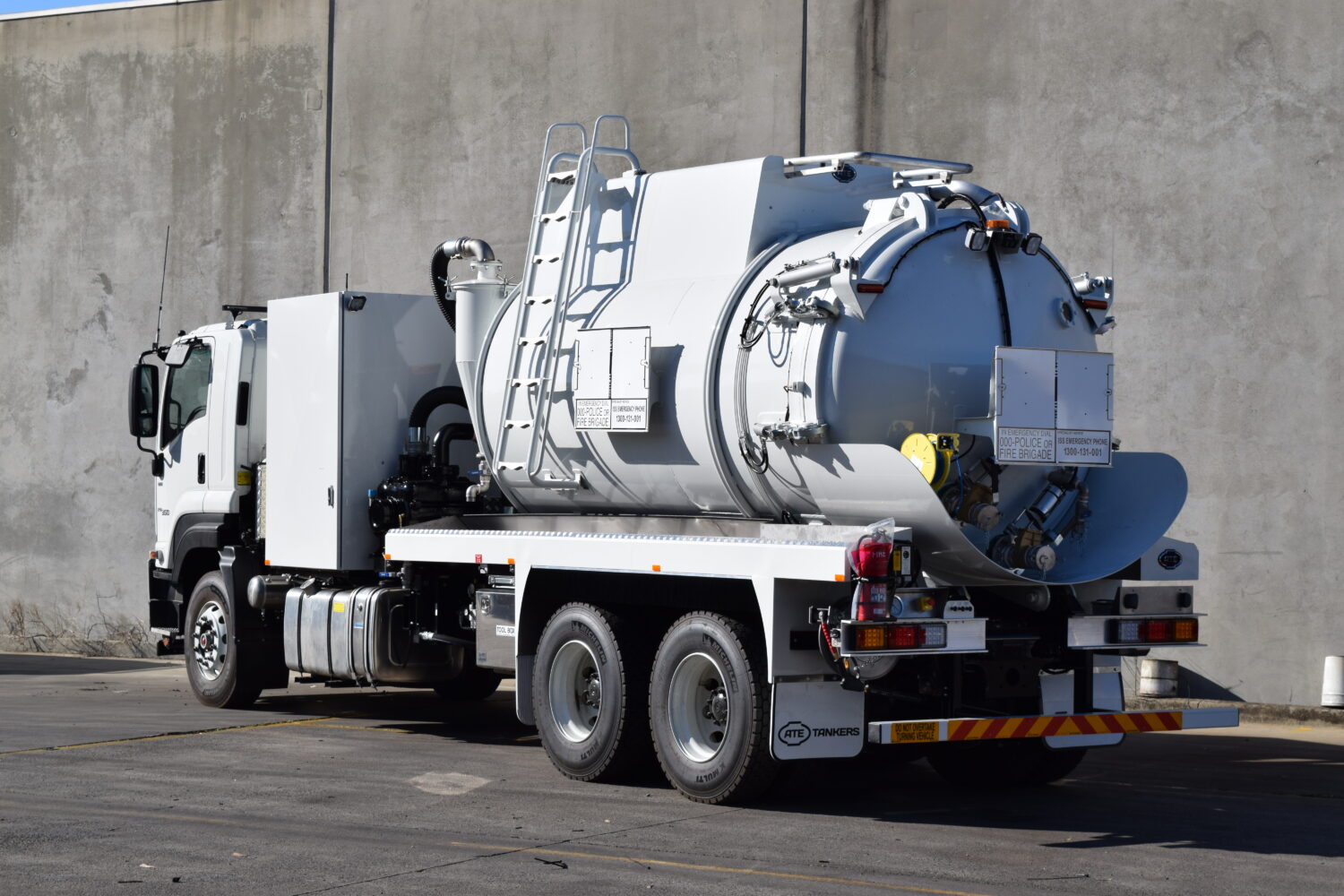

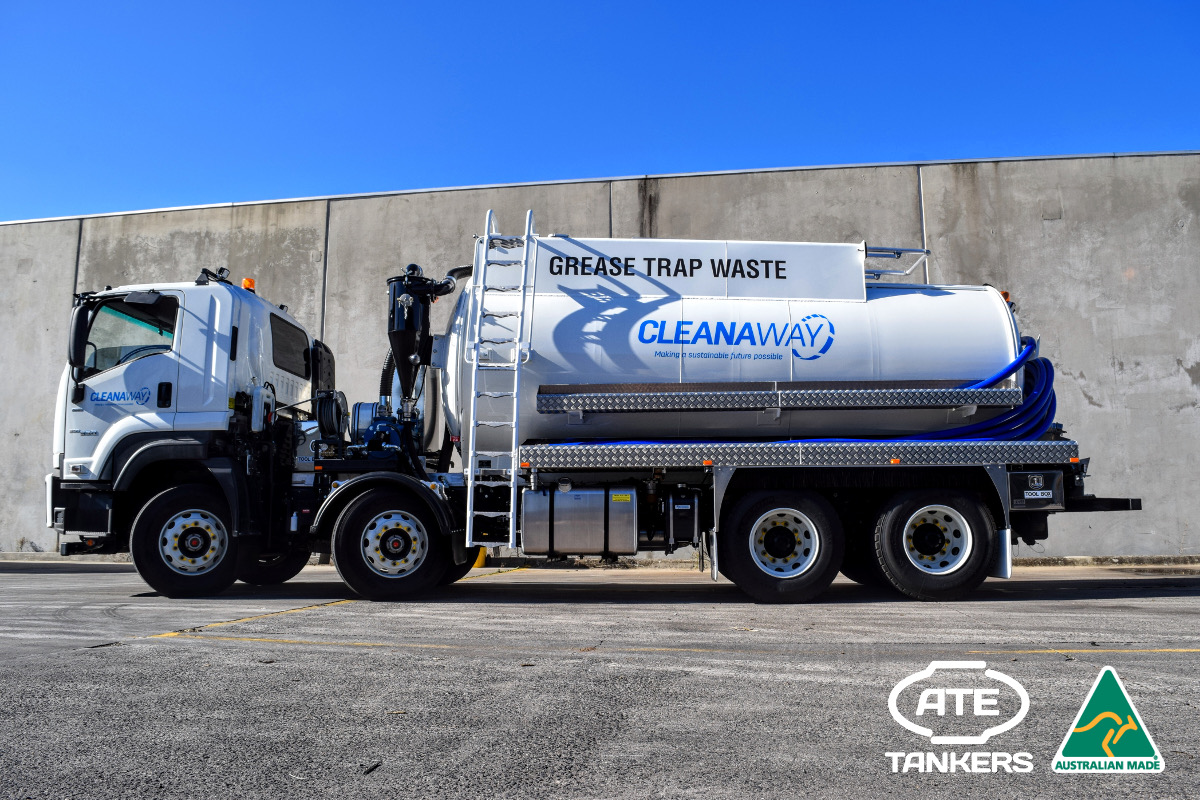

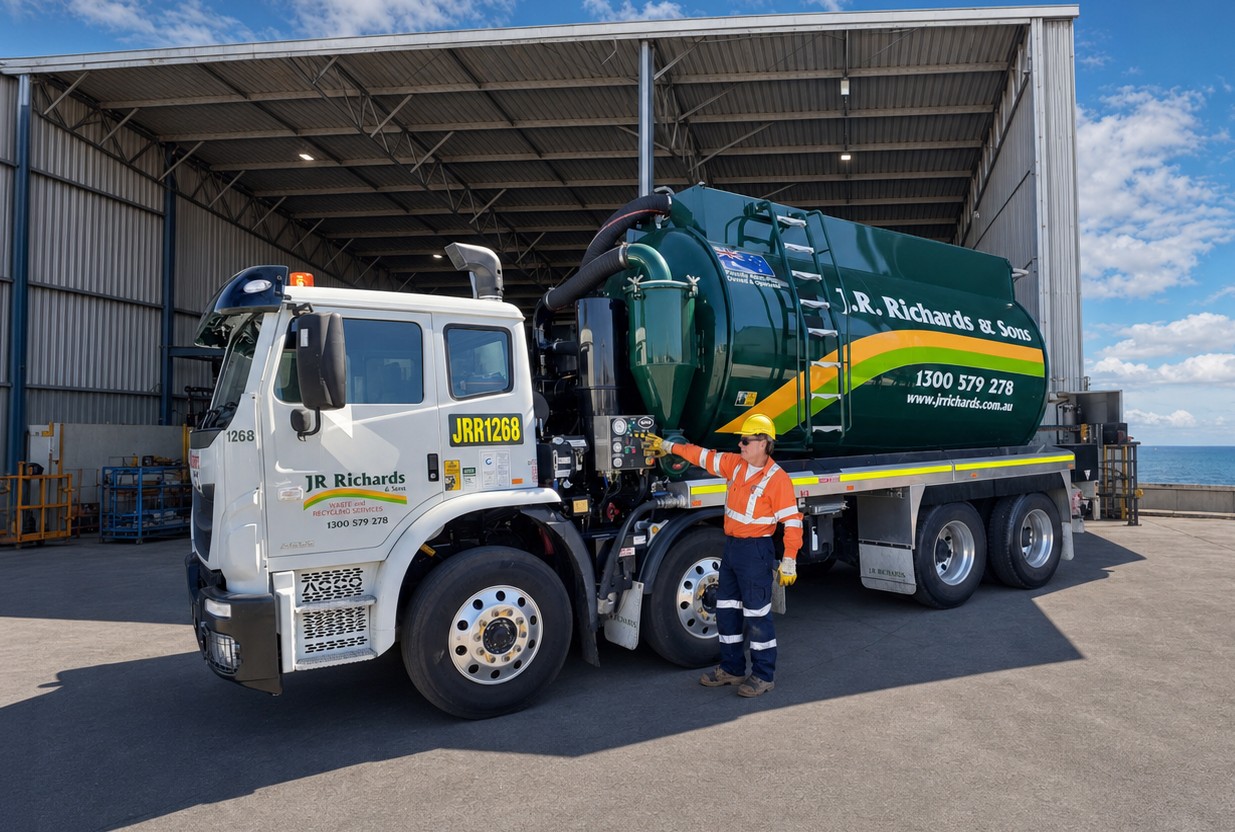

RIGID LIQUID vacuum tankers
- Engineered for Isuzu, FUSO and VOLVO cab chassis.
- 4×2 Rigid. 7,000LT 8mm carbon steel or 8,000LT 8mm aluminium barrels.
- 6×4 Rigid. 12,000LT 8mm carbon steel or 13,000LT 8mm aluminium barrels.
- 8×4 Rigid. 14,000LT 8mm carbon steel or 16,000LT 8mm aluminium barrels.
- Tipping and rear door opening options.
- Pompetravaini 600CFM liquid ring vacuum pump.
- 3000PSI 21LPM water pump with 300LT water tank.
- Upgrades available.
DANGEROUS GOODS LIQUID VACUUM LOADING TANKER SOLUTIONS
DANGEROUS GOODS LIQUID vacuum tankers
ATE is a volume fuel tanker OEM and leverages this experience to manufacture AS2809 DG vacuum tankers.
- Rigid, dog trailer and semi-trailer AS2809 dangerous goods vacuum tankers.
- 8mm stainless steel barrels.
- Tipping and rear door opening options.
- Pompetravaini 600CFM liquid ring vacuum pump.
- 3000PSI 21LPM water pump with 300LT water tank.
- Upgrades available.

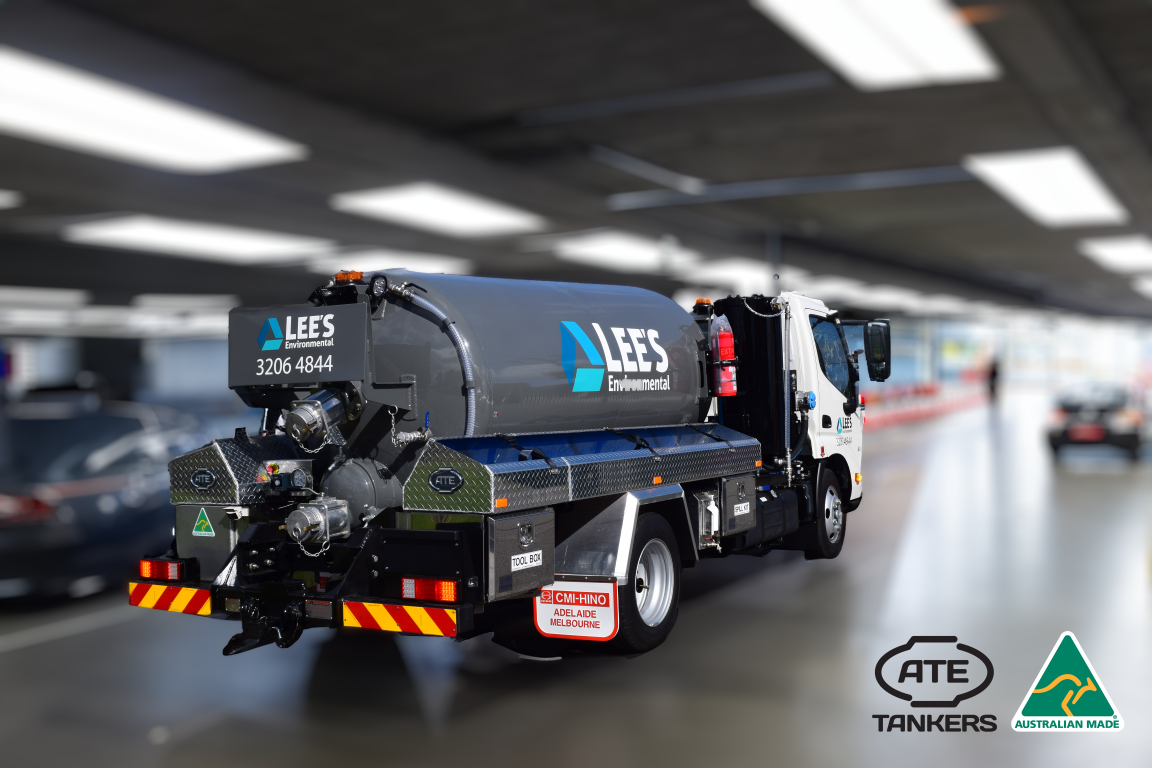

low clearance LIQUID VACUUM LOADING TANKER SOLUTIONS

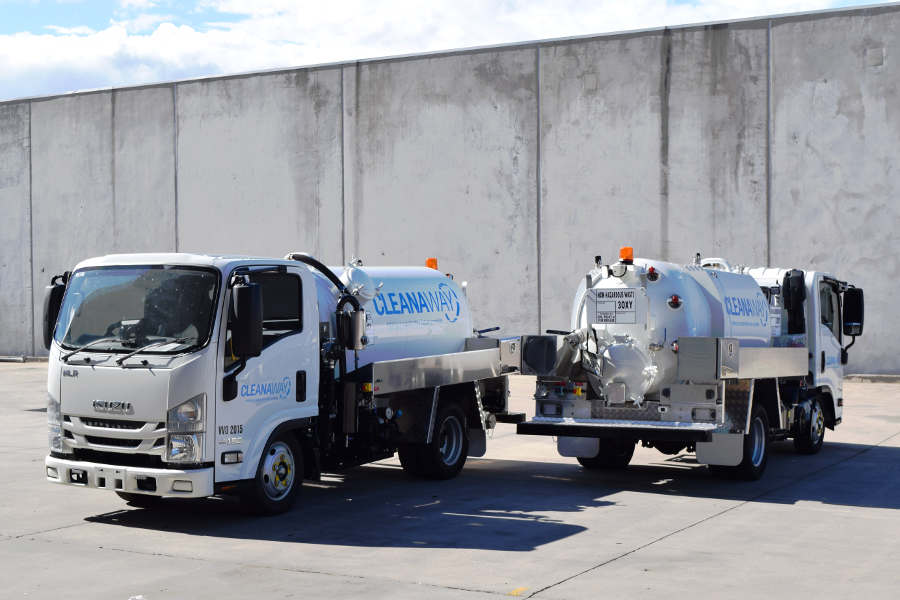

low clearance vacuum tankers
Our versatile 2.0m low clearance vacuum tanker is optimized for maximum volume and payload. Fitted with an 8mm aluminium barrel, this vacuum tanker is both lightweight and durable. Suitable for access to low clearance areas such as multi-story car parks.
- 2.0m maximum height on an Isuzu cab chassis.
- 3500LT 8mm aluminium barrel.
- Pompetravaini 320CFM liquid ring vacuum pump.
- 2200PSI 15LPM water pump.
- PTO and pump controls located on an intuitive rear control panel.
- Upgrades available.

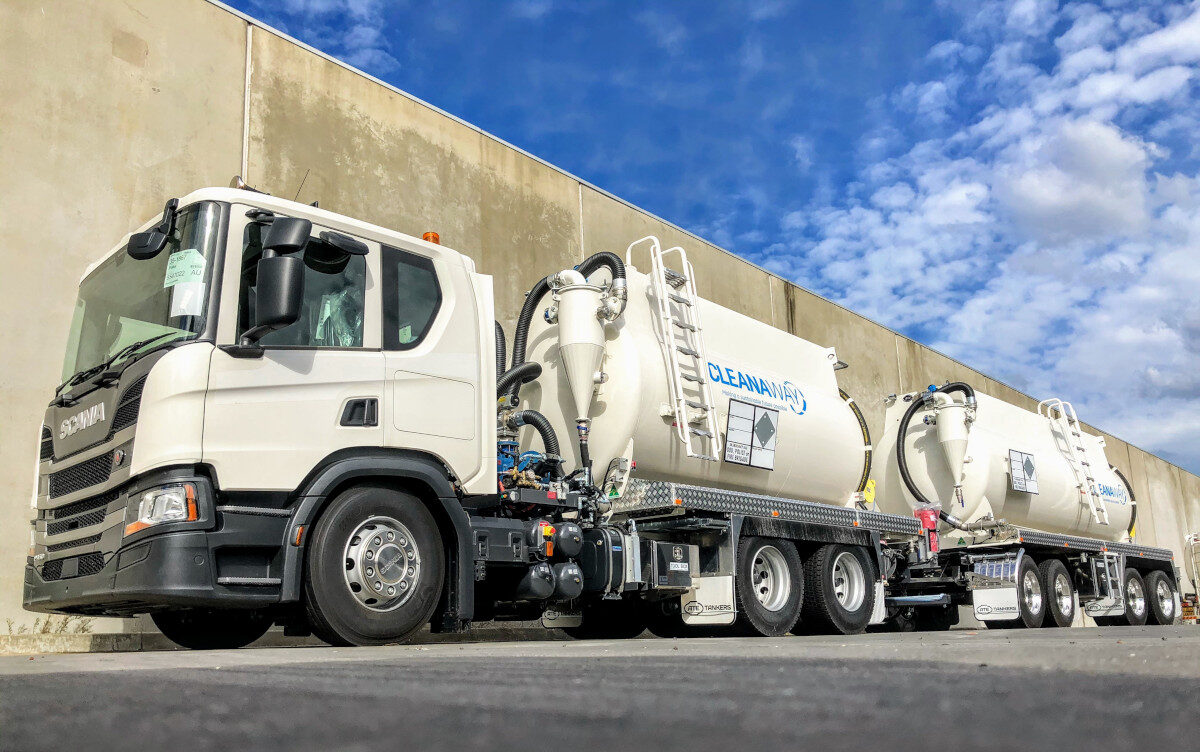

dog trailer LIQUID VACUUM LOADING TANKER SOLUTIONS

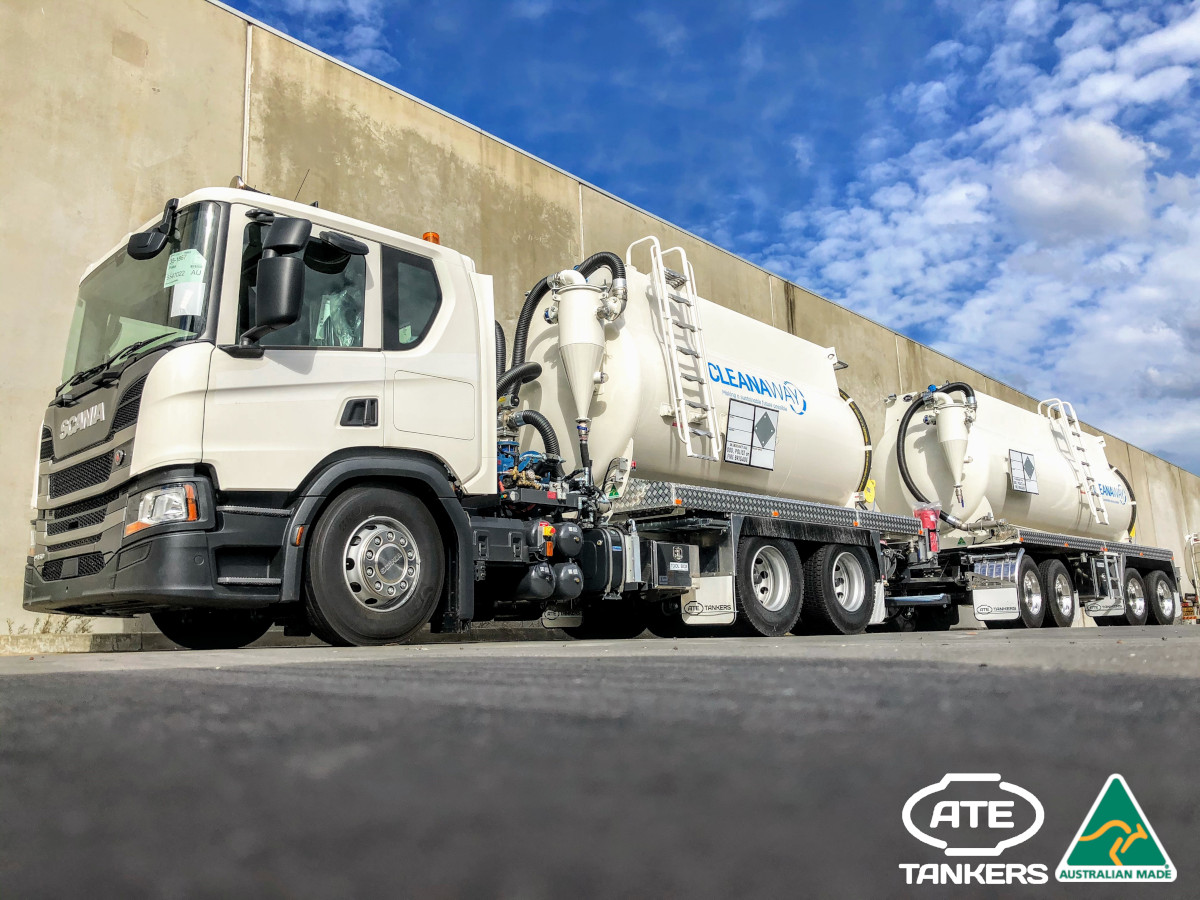

DOG TRAILER vacuum tankers
Dog trailers when paired with a rigid vacuum tanker are a flexible solution to increase the volume and payload capacity of a rigid vacuum tanker investment. For example, an 8×4 rigid 15,000LT vacuum tanker paired with a 15,000LT dog trailer increases the usable volume to 30,000LT per trip.
ATE specialise in pairing rigid cab chassis and dog trailers to optimise each solution to the intended operation.
- 3-axle, 4-axle and 6-axle dog trailers.
- 15,000LT 8mm carbon steel or 8mm aluminium barrels.
- Dolly lock and rear door opening option.
- 5-degree tipping angle when fitted with an TASC air bag system.
- Upgrades available.

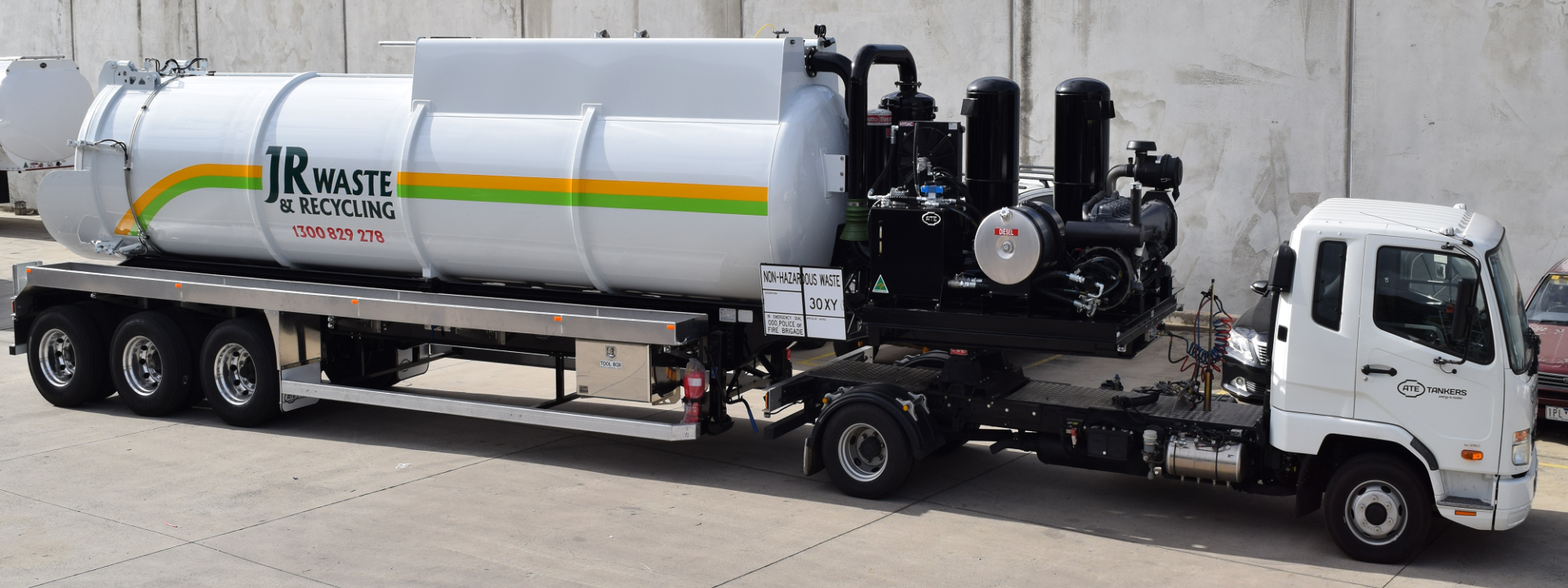

SEMI trailer LIQUID VACUUM LOADING TANKER SOLUTIONS

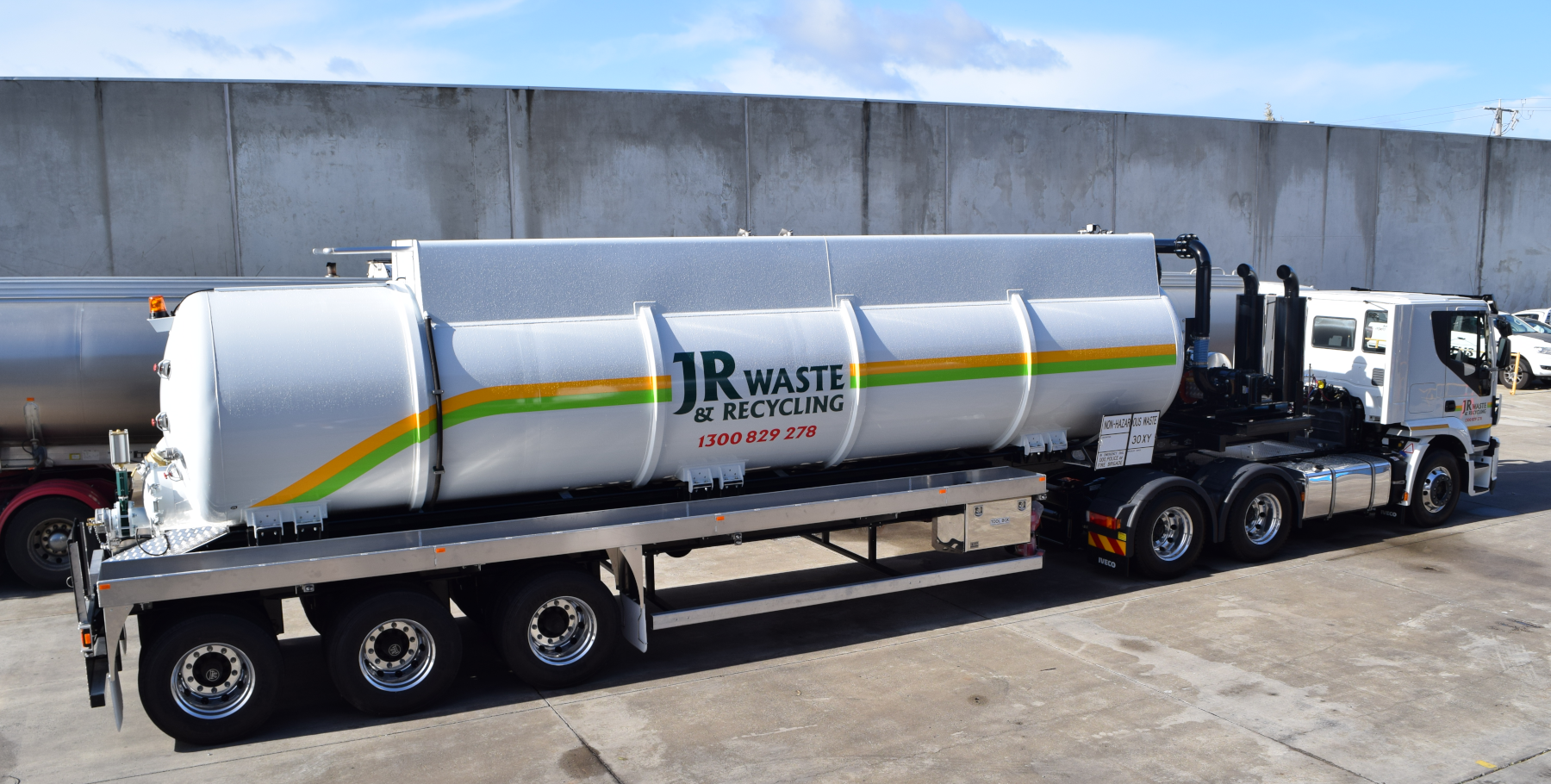

SEMI TRAILER vacuum tankers
3-axle semi-trailer vacuum tanker solutions for bulk vacuum loading.
- Option 1. 24,000LT 8mm carbon steel barrel with tipping and rear door opening option.
- Option 2. 24,000LT 8mm lightweight aluminium barrel suitable for liquid waste.
- Power pack with a 600CFM liquid ring vacuum pump option on both tankers.
HOOK LIFT LIQUID VACUUM LOADING TANKER SOLUTIONS
HOOK LIFT vacuum tankers
Hook lift vacuum tanker modules increase fleet versatility by allowing a single cab chassis to operate interchangeable truck bodies.
- Configurations available for 6×4 and 8×4 rigid cab chassis.
- Power pack with a 600CFM liquid ring vacuum pump option.
VACUUM TANKER DESIGN PHILOSOPHY
OUR design philosophy
Each vacuum tanker application is unique, and each customer has different operational requirements.
Our design approach focuses on the operation the tanker needs to perform, volume and payload optimization, efficiency, usability and reliability. Customer preferences from the cab chassis and vacuum pump to lighting, toolboxes, hose trays and safety requirements are all considered to ensure each tanker is fit for purpose and built to last.
Need a bespoke vacuum tanker? Our engineering team can design one for you.
ATE manufactures rigid mounted, dangerous goods, low clearance, rigid and dog trailer combinations, semi-trailer and hook lift vacuum tankers.
Our vacuum tankers are used across any industry which has a requirement for liquid vacuum loading. Applications include vacuum loading of industrial liquid waste, hazardous liquids, sewer and stormwater, grease traps, septic systems, effluent management and emergency response (flooding etc).
Absolutely. We take pride in designing tankers to meet customer expectations!
Each vacuum tanker can be configured to suit your operational requirements, including barrel capacity, chassis, trailer configuration, vacuum system, hydraulic equipment, rear door arrangements, discharge systems and ancillary equipment.
Yes. ATE specialises in the design and manufacture of Dangerous Goods vacuum tankers, with configurations engineered to meet the applicable requirements of AS2809 and the Australian Dangerous Goods Code where required.
Our barrels are built to last. We offer aluminium, carbon steel and stainless steel in 8mm thickness. Barrels comply with AS1210 and can be matched to the intended product and operating environment.
Liquid ring pumps, positive displacement blowers and application-specific vacuum systems. Vacuum pumps can be PTO or auxiliary-engine driven. ATE’s preferred vacuum pump solution for a liquid vacuum loading tanker is a liquid ring vacuum pump due to its liquid handling ability, dangerous goods compliance, robustness, lower maintenance and lower noise.
ATE offer a wide range of options including hydraulic tipping, rear opening doors, hose reels and washdown systems. We also fit accessories such as toolboxes, lighting, and safety systems.

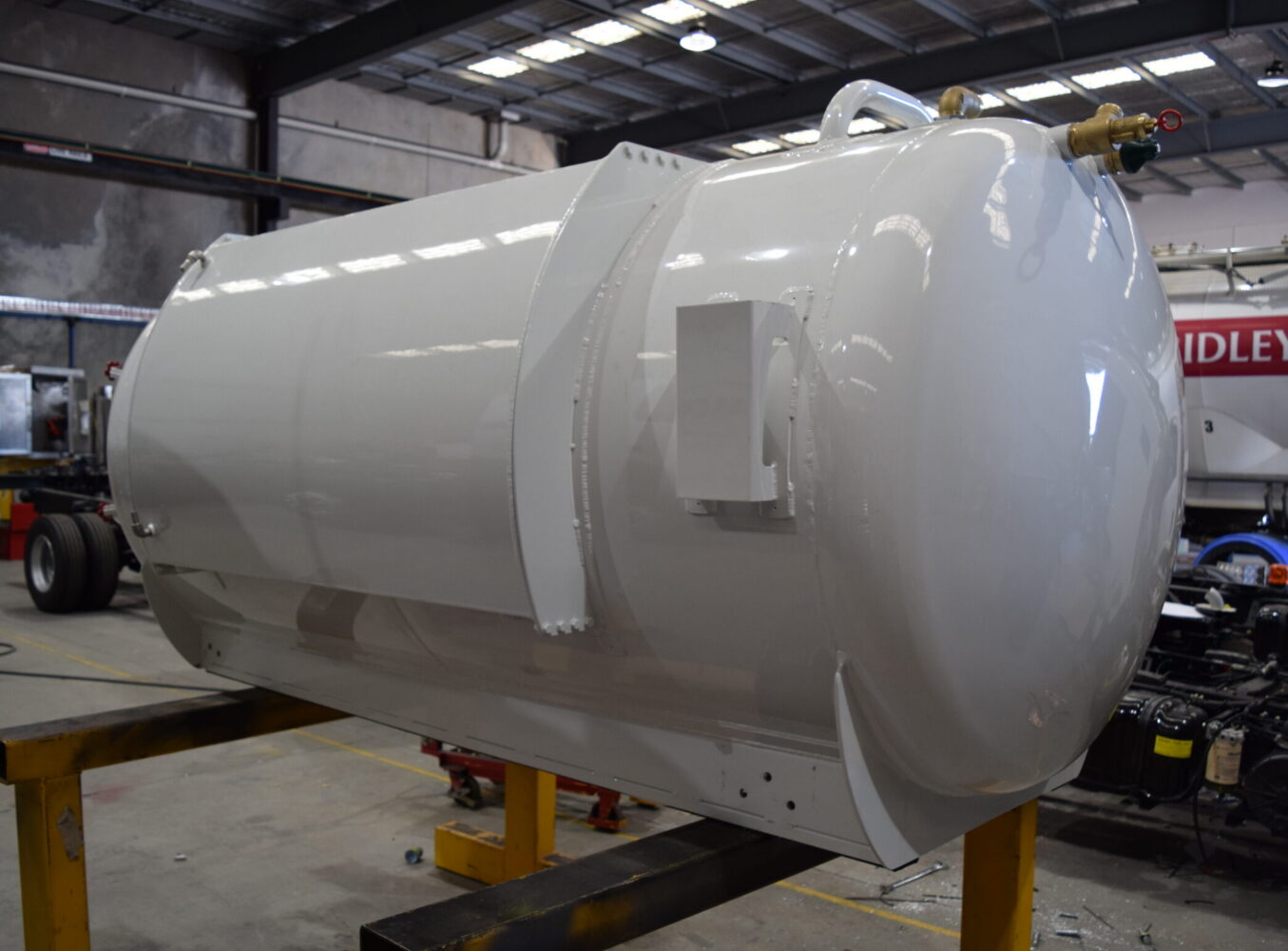

ALUMINIUM VACUUM TANKER BARRELS
ALUMINIUM BARREL SPECIALISTS
ATE manufactures aluminium vacuum tanker alongside our road fuel tankers, providing greater control over quality, engineering and manufacturing throughout the build process.
Aluminium barrels are suitable for compatible non-abrasive liquid waste applications and offer several advantages over steel barrels.
- Lighter weight material allows for larger barrel sizes and increased payload. This leads to lower operating costs and a higher return on your investment for each load.
- Excellent corrosion resistance.
- Extended service life in appropriate operating environments.
AS2809 DANGEROUS GOODS VACUUM TANKER SPECIALISTS

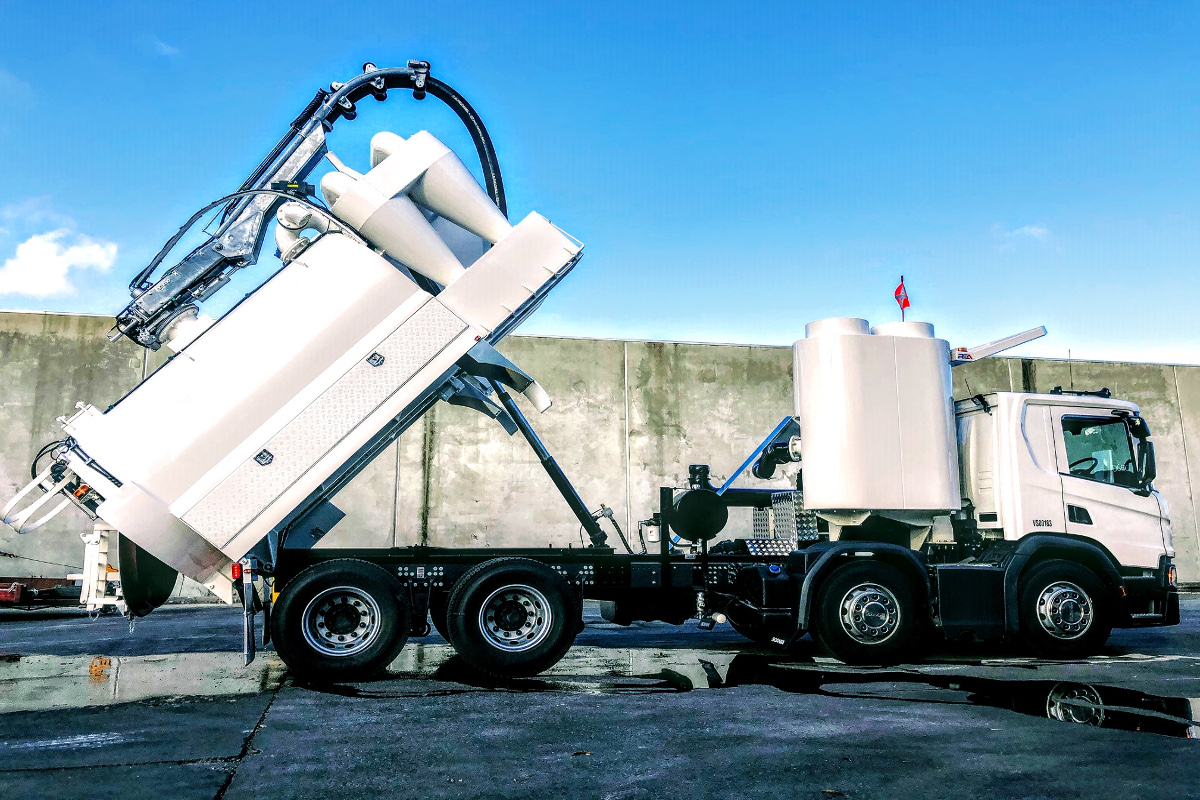

featured tanker – THE MODERN WORKHORSE
Designed and manufactured for demanding industrial applications, this heavy-duty AS1210 dangerous goods vacuum tanker was engineered to safely collect and transport flammable, corrosive and toxic liquids.
The tanker featured a high-performance liquid ring vacuum system, fully integrated hydraulic controls, tipping cylinder and a rear-opening door for the efficient discharge of solids. Designed to operate as a single unit or as part of a Quad Dog combination, the tanker provided our client with a versatile solution for high-capacity liquid waste collection and transport.
tri-axle vacuum tanker
featured project tri-axle vacuum tanker
Developed to handle a wide variety of heavy duty liquid waste applications, this project was delivered with a 24,000LT, 8mm 304 stainless steel barrel, steer axle for improved manoeuvrability, tipping and rear door opening system, and a 3050m3 vacuum system powered by a stand-alone donkey power pack.
